AD7847BQ

In Stock: 127

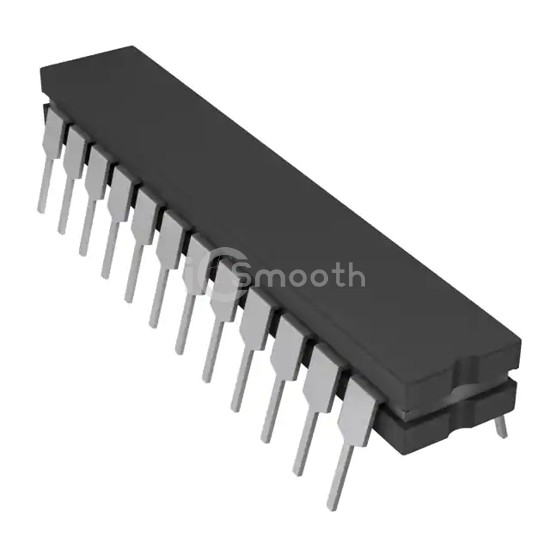

AD7847BQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7847BQ Analog Devices Inc.
AD7847BQ

Analog Devices Inc.

IC DAC 12BIT V-OUT 24CDIP

AD7847BQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, analog ±14.25V ~ 15.75V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 127

Specifications

16 parameters
Product StatusObsolete
Number of Bits12
Number of D/A Converters2
Settling Time5µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case24-CDIP (0.300", 7.62mm)
Supplier Device Package24-CDIP
Mounting TypeThrough Hole
