Name: AD7845BQ
Brand: Analog Devices Inc.
SKU: AD7845BQ
Price: 35.56 USD
Availability: InStock

REF: AD7845BQ Analog Devices Inc.

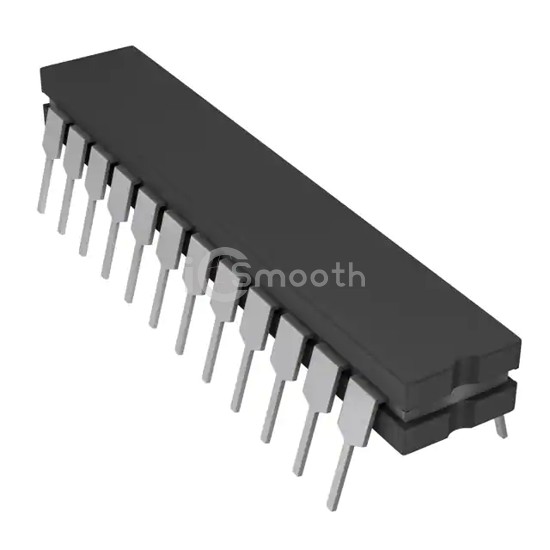

AD7845BQ

IC DAC 12BIT V-OUT 24CDIP

AD7845BQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, analog ±14.25V ~ 15.75V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 54

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	1
Settling Time	5µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	Parallel
Reference Type	External

Voltage - Supply, Analog	±14.25V ~ 15.75V
Voltage - Supply, Digital	-
INL/DNL (LSB)	±0.75 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 85°C
Package / Case	24-CDIP (0.300", 7.62mm)
Supplier Device Package	24-CDIP
Mounting Type	Through Hole
