AD7841BSZ-REEL

In Stock: 5,048
AD7841BSZ-REEL - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7841BSZ-REEL Analog Devices Inc.
AD7841BSZ-REEL

Analog Devices Inc.

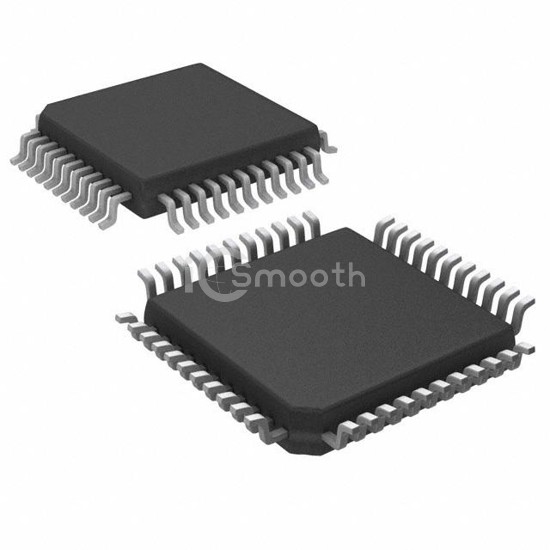

IC DAC 14BIT V-OUT 44MQFP

AD7841BSZ-REEL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 5,048

Specifications

16 parameters
Product StatusObsolete
Number of Bits14
Number of D/A Converters8
Settling Time31µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±13.5V ~ 16.5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case44-QFP
Supplier Device Package44-MQFP (10x10)
Mounting TypeSurface Mount
