AD7839ASZ

In Stock: 455
AD7839ASZ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7839ASZ Analog Devices Inc.

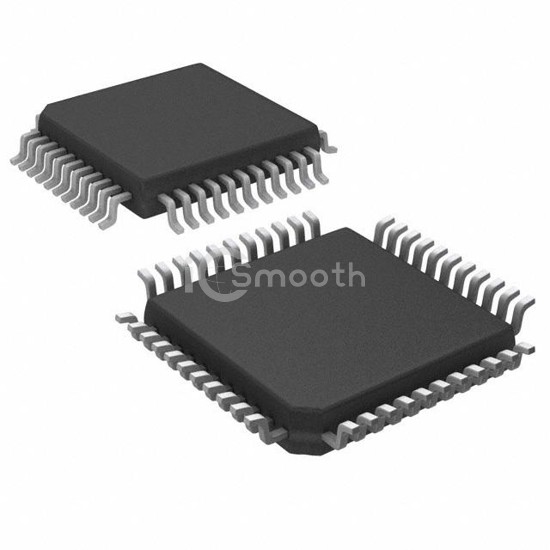

AD7839ASZ

Analog Devices Inc.

IC DAC 13BIT V-OUT 44MQFP

AD7839ASZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 13BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 455

Tiered Pricing USD
1+ $59.5400 —
11+ $55.7873 -6% BEST

Specifications

16 parameters
Product StatusActive
Number of Bits13
Number of D/A Converters8
Settling Time40µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±2 (Max), ±0.9 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case44-QFP
Supplier Device Package44-MQFP (10x10)
Mounting TypeSurface Mount
