AD7836ASZ

In Stock: 9,580

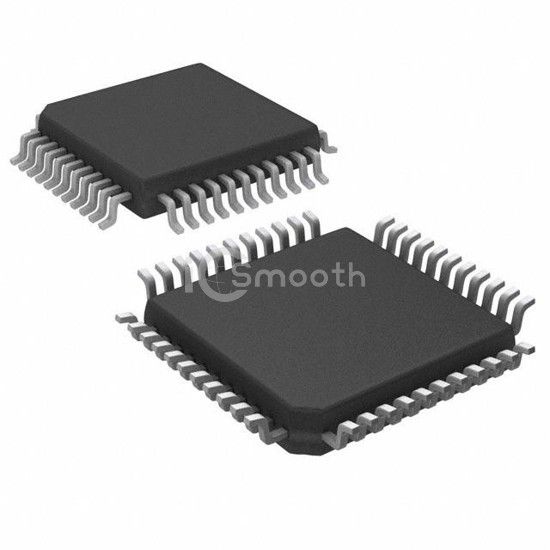

AD7836ASZ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7836ASZ Analog Devices Inc.
AD7836ASZ

Analog Devices Inc.

IC DAC 14BIT V-OUT 44MQFP

AD7836ASZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 9,580

Tiered Pricing USD
1+ $70.2900 —
11+ $56.0255 -20% BEST

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters4
Settling Time16µs (Typ)
Output TypeVoltage - Buffered
Differential OutputYes
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±2 (Max), ±0.9 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case44-QFP
Supplier Device Package44-MQFP (10x10)
Mounting TypeSurface Mount
