Name: AD7689CCPZRL7
Brand: Analog Devices Inc.
SKU: AD7689CCPZRL7
Price: 13.15 USD
Availability: InStock

REF: AD7689CCPZRL7 Analog Devices Inc.

AD7689CCPZRL7

Analog Devices Inc.

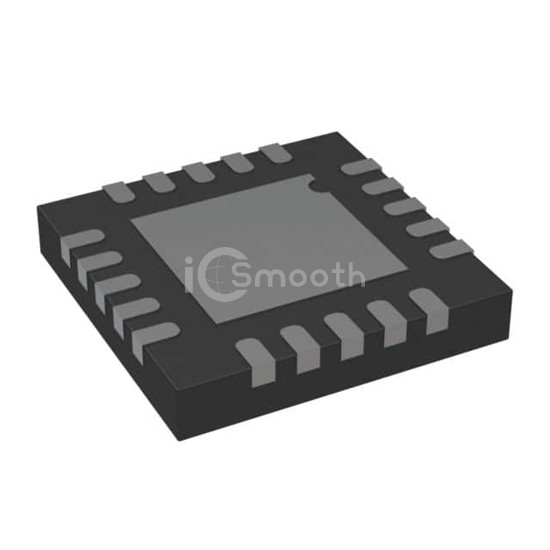

IC ADC 16BIT SAR 20LFCSP

AD7689CCPZRL7 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 16BIT SAR 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 20-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 9,307

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	250k
Number of Inputs	8
Input Type	Differential, Single Ended
Data Interface	Serial
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	2.3V ~ 5.5V
Voltage - Supply, Digital	2.3V ~ 5.5V
Features	Simultaneous Sampling, Temperature Sensor
Operating Temperature	-40°C ~ 125°C
Package / Case	20-WFQFN Exposed Pad, CSP
Supplier Device Package	20-LFCSP (4x4)
Mounting Type	Surface Mount
