Name: AD7689BCBZ-RL7
Brand: Analog Devices Inc.
SKU: AD7689BCBZ-RL7
Price: 19.75 USD
Availability: InStock

REF: AD7689BCBZ-RL7 Analog Devices Inc.

AD7689BCBZ-RL7

Analog Devices Inc.

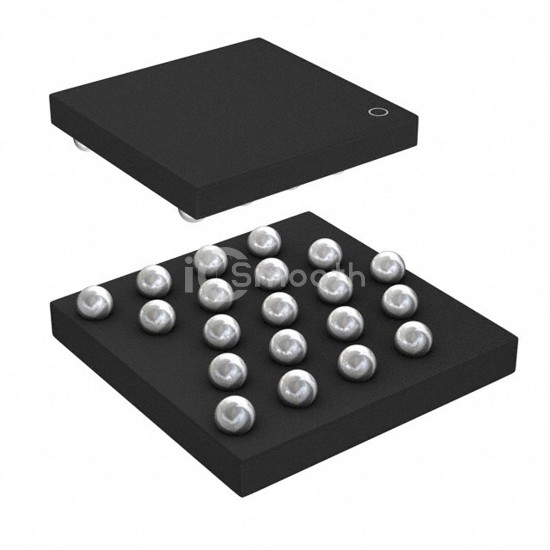

IC ADC 16BIT SAR 20WLCSP

AD7689BCBZ-RL7 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 16BIT SAR 20WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.8V ~ 5.5V, package / case 20-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 8,837

Tiered Pricing USD

1+ $19.7500 —

10+ $14.0100 -29%

25+ $12.5140 -37%

100+ $11.2750 -43% BEST

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	250k
Number of Inputs	8
Input Type	Differential, Pseudo-Differential, Single Ended
Data Interface	SPI, DSP
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	2.3V ~ 5.5V
Voltage - Supply, Digital	1.8V ~ 5.5V
Features	Temperature Sensor
Operating Temperature	-40°C ~ 85°C
Package / Case	20-UFBGA, WLCSP
Supplier Device Package	20-WLCSP (2.39x2.39)
Mounting Type	Surface Mount
