AD760AQ

In Stock: 3,328
AD760AQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD760AQ Analog Devices Inc.

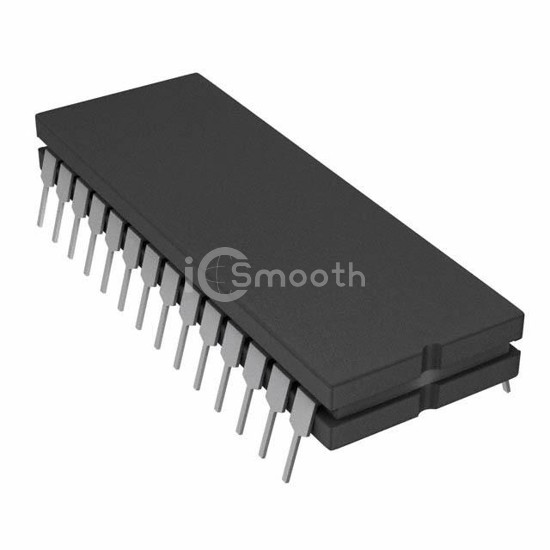

AD760AQ

Analog Devices Inc.

IC DAC 16BIT V-OUT 28CDIP

AD760AQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 3,328

Specifications

16 parameters
Product StatusObsolete
Number of Bits16
Number of D/A Converters1
Settling Time13µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel, Serial
Reference TypeExternal, Internal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.2, ±0.2
ArchitectureCurrent Steering, R-2R
Operating Temperature-40°C ~ 85°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
