AD7534SQ

In Stock: 1,010

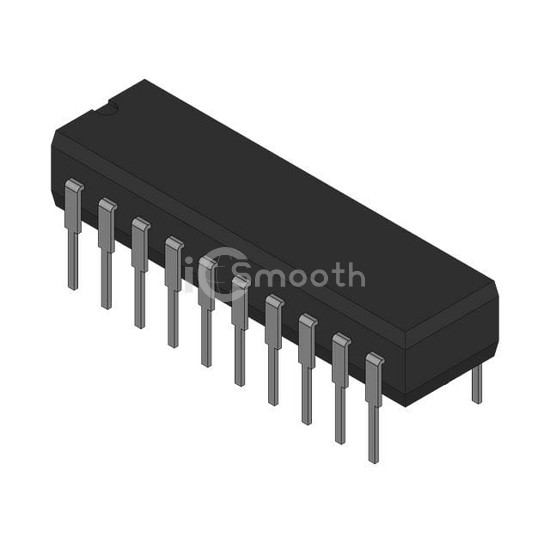

AD7534SQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7534SQ Analog Devices Inc.
AD7534SQ

Analog Devices Inc.

D/A CONVERTER, 1 FUNC, PARALLEL,

AD7534SQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. D/A CONVERTER, 1 FUNC, PARALLEL,. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 11.4V ~ 15.75V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,010

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters1
Settling Time800ns (Typ)
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog11.4V ~ 15.75V
Voltage - Supply, Digital11.4V ~ 15.75V
INL/DNL (LSB)±1, ±1
ArchitectureMultiplying DAC, R-2R
Operating Temperature-55°C ~ 125°C
Package / Case20-CDIP (0.300", 7.62mm)
Supplier Device Package20-CERDIP
Mounting TypeThrough Hole
