AD7528CQ

In Stock: 3,802

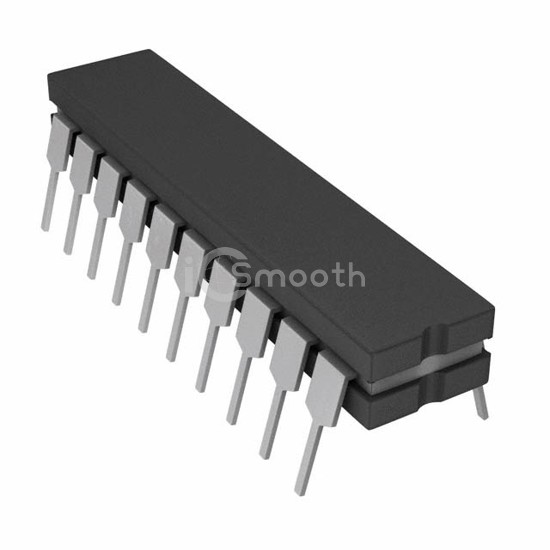

AD7528CQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7528CQ Analog Devices Inc.
AD7528CQ

Analog Devices Inc.

IC DAC 8BIT A-OUT 20CDIP

AD7528CQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT A-OUT 20CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V ~ 15V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,802

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters2
Settling Time400ns
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog5V ~ 15V
Voltage - Supply, Digital5V ~ 15V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case20-CDIP (0.300", 7.62mm)
Supplier Device Package20-CERDIP
Mounting TypeThrough Hole
