AD75004KNZ

In Stock: 162

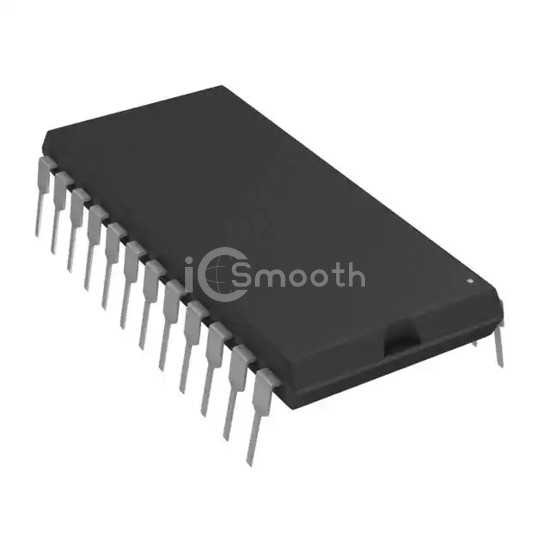

AD75004KNZ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD75004KNZ Analog Devices Inc.
AD75004KNZ

Analog Devices Inc.

IC DAC 12BIT V-OUT 24DIP

AD75004KNZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, analog ±10.8V ~ 13.2V, package / case 24-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 162

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time4µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±10.8V ~ 13.2V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.5, ±0.5
ArchitectureCurrent Steering
Operating Temperature0°C ~ 70°C
Package / Case24-DIP (0.600", 15.24mm)
Supplier Device Package24-PDIP
Mounting TypeThrough Hole
