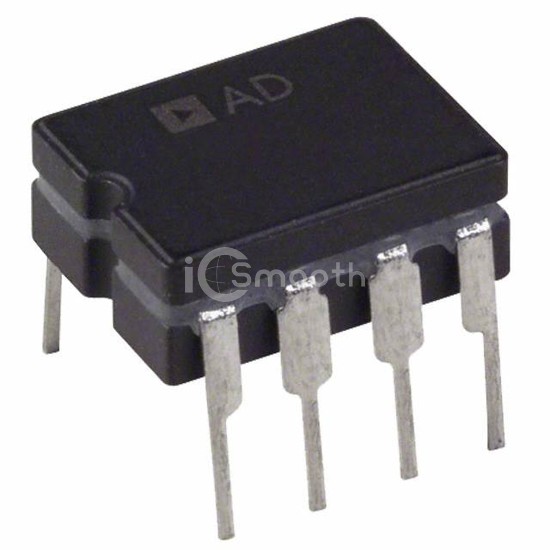

AD746BQ

In Stock: 2,657
AD746BQ - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD746BQ Analog Devices Inc.
AD746BQ

Analog Devices Inc.

IC OPAMP JFET 13MHZ 8CDIP

AD746BQ is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP JFET 13MHZ 8CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 8-CDIP (0.300", 7.62mm), current - supply 7mA.

Datasheet Request a Quote

In Stock: 2,657

Specifications

17 parameters
Product StatusActive
Amplifier TypeJ-FET
Number of Circuits2
Output Type-
Slew Rate75V/µs
Gain Bandwidth Product13 MHz
-3db Bandwidth13 MHz
Current - Input Bias110 pA
Voltage - Input Offset250 µV
Current - Supply7mA
Current - Output / Channel25 mA
Voltage - Supply Span (Min)9 V
Voltage - Supply Span (Max)36 V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-CDIP (0.300", 7.62mm)
Supplier Device Package8-CERDIP
