Name: AD7292BCPZ
Brand: Analog Devices Inc.
SKU: AD7292BCPZ
Availability: InStock

REF: AD7292BCPZ Analog Devices Inc.

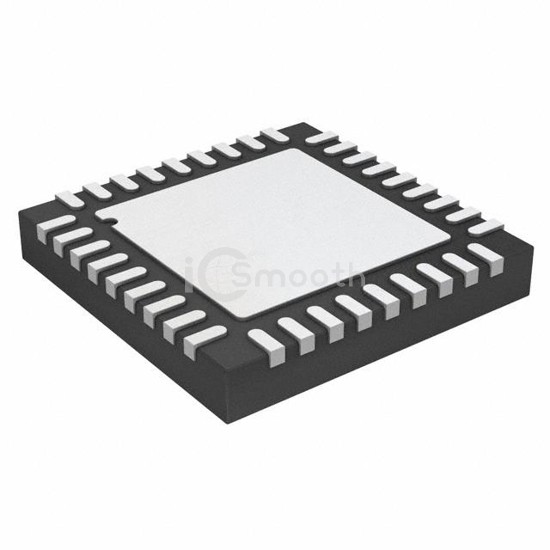

AD7292BCPZ

IC ADC 10BIT SAR 36LFCSP

AD7292BCPZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 10BIT SAR 36LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 1.8V ~ 5.25V, package / case 36-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 9,469

Specifications

18 parameters

Product Status	Obsolete
Number of Bits	10
Sampling Rate (Per Second)	625k
Number of Inputs	1, 8
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External, Internal
Voltage - Supply, Analog	5V
Voltage - Supply, Digital	1.8V ~ 5.25V
Features	Temperature Sensor
Operating Temperature	-40°C ~ 125°C
Package / Case	36-WFQFN Exposed Pad, CSP
Supplier Device Package	36-LFCSP-WQ (6x6)
Mounting Type	Surface Mount
