AD7244AQ

In Stock: 9,920
AD7244AQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7244AQ Analog Devices Inc.
AD7244AQ

Analog Devices Inc.

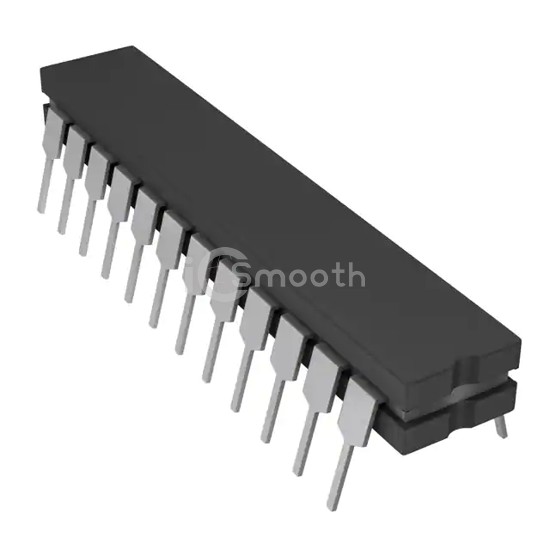

IC DAC 14BIT V-OUT 24CDIP

AD7244AQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, analog ±5V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 9,920

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters2
Settling Time4µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal, Internal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital-
INL/DNL (LSB)±2 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case24-CDIP (0.300", 7.62mm)
Supplier Device Package24-CDIP
Mounting TypeThrough Hole
