AD7237ATQ

In Stock: 927

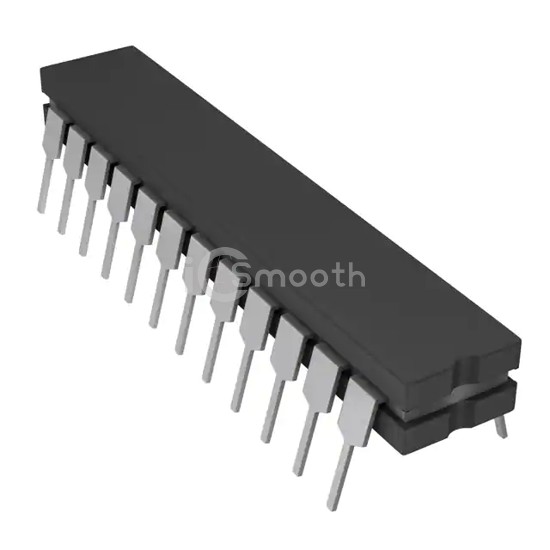

AD7237ATQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD7237ATQ Analog Devices Inc.
AD7237ATQ

Analog Devices Inc.

IC DAC 12BIT V-OUT 24CDIP

AD7237ATQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 155°C, voltage - supply, analog ±10.8V ~ 16.5V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 927

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters2
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±10.8V ~ 16.5V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.5 (Max), ±0.9 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 155°C
Package / Case24-CDIP (0.300", 7.62mm)
Supplier Device Package24-CDIP
Mounting TypeThrough Hole
