Name: AD7134BCPZ
Brand: Analog Devices Inc.
SKU: AD7134BCPZ
Price: 29.65 USD
Availability: InStock

REF: AD7134BCPZ Analog Devices Inc.

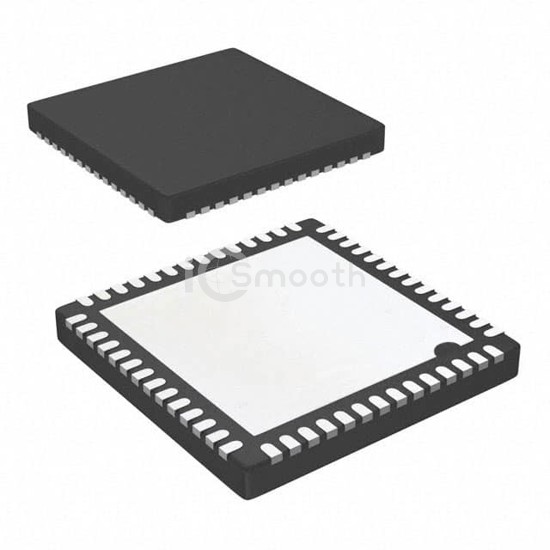

AD7134BCPZ

IC ADC 24BIT SAR 56LFCSP

AD7134BCPZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 24BIT SAR 56LFCSP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 85°C, voltage - supply, digital 1.65V ~ 1.95V, package / case 56-WFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 6,578

Specifications

18 parameters

Product Status	Not For New Designs
Number of Bits	24
Sampling Rate (Per Second)	1.5M
Number of Inputs	4
Input Type	Differential, Single Ended
Data Interface	DSP, MICROWIRE, QSPI, Serial, SPI
Configuration	ADC
Ratio - S/H:ADC	0:1
Number of A/D Converters	1

Architecture	SAR
Reference Type	External
Voltage - Supply, Analog	4.5V ~ 5.5V
Voltage - Supply, Digital	1.65V ~ 1.95V
Features	Simultaneous Sampling
Operating Temperature	0°C ~ 85°C
Package / Case	56-WFQFN Exposed Pad, CSP
Supplier Device Package	56-LFCSP-WQ (8x8)
Mounting Type	Surface Mount
