AD664SD-UNI

In Stock: 1,465

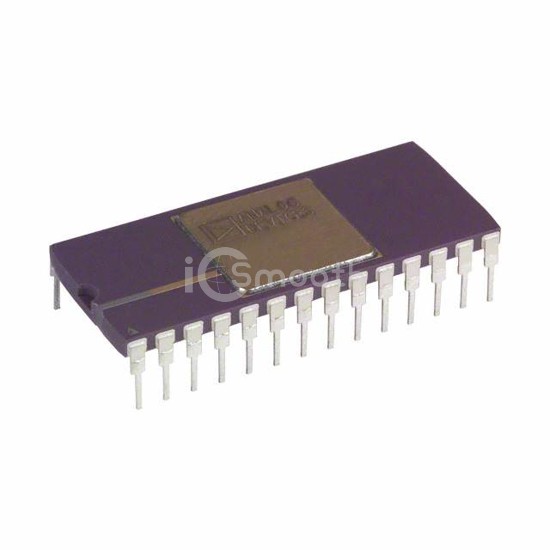

AD664SD-UNI - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD664SD-UNI Analog Devices Inc.
AD664SD-UNI

Analog Devices Inc.

IC DAC 12BIT V-OUT 28CDIP

AD664SD-UNI is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 5V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 1,465

Specifications

16 parameters
Product StatusObsolete
Number of Bits12
Number of D/A Converters4
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±11.4V ~ 16.5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.75, ±0.75 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
