AD660SQ

In Stock: 281
AD660SQ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD660SQ Analog Devices Inc.

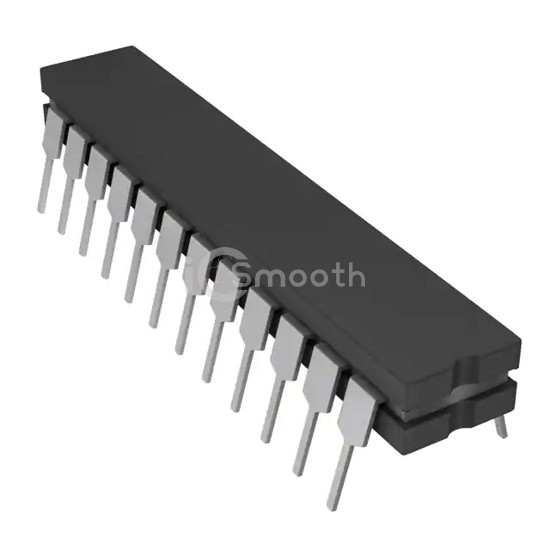

AD660SQ

Analog Devices Inc.

IC DAC 16BIT V-OUT 24CDIP

AD660SQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 5V, package / case 24-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 281

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time13µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal, Internal
Voltage - Supply, Analog±13.5V ~ 16.5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±4 (Max), ±4 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case24-CDIP (0.300", 7.62mm)
Supplier Device Package24-CDIP
Mounting TypeThrough Hole
