Name: AD585SQ
Brand: Analog Devices Inc.
SKU: AD585SQ
Availability: InStock

REF: AD585SQ Analog Devices Inc.

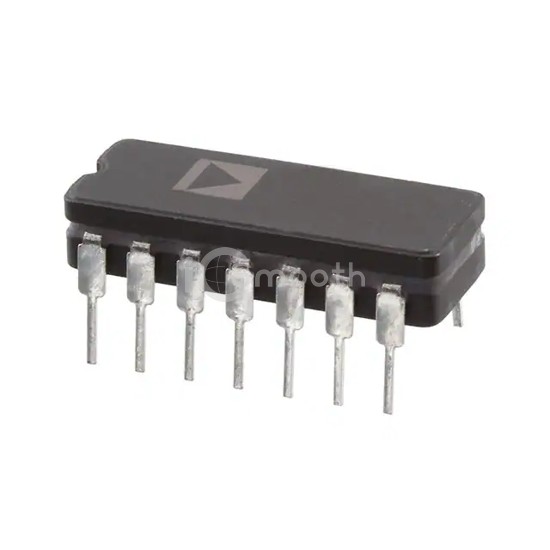

AD585SQ

IC SAMPL/HOLD 1 CIRCUIT 14CERDIP

AD585SQ is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC SAMPL/HOLD 1 CIRCUIT 14CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 14-CDIP (0.300", 7.62mm), current - supply 10mA.

Datasheet Request a Quote

In Stock: 1,163

Specifications

17 parameters

Product Status	Active
Amplifier Type	Sample and Hold
Number of Circuits	1
Output Type	-
Slew Rate	10V/µs
Gain Bandwidth Product	-
-3db Bandwidth	2 MHz
Current - Input Bias	2 nA
Voltage - Input Offset	2 mV

Current - Supply	10mA
Current - Output / Channel	50 mA
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	14-CDIP (0.300", 7.62mm)
Supplier Device Package	14-CERDIP
