Name: AD582KD
Brand: Analog Devices Inc.
SKU: AD582KD
Price: 92.55 USD
Availability: InStock

REF: AD582KD Analog Devices Inc.

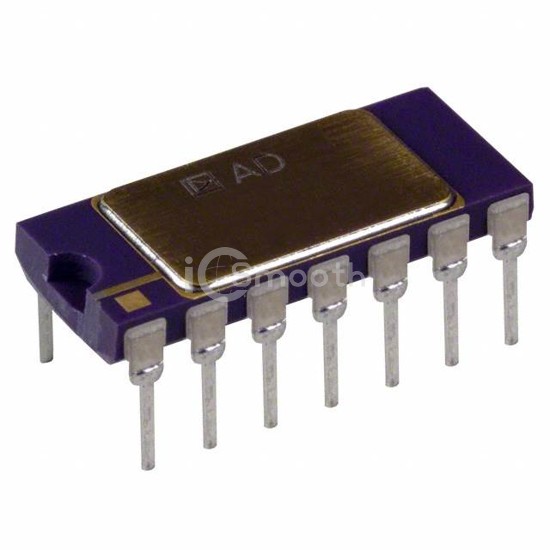

AD582KD

IC SAMPL/HOLD 1 CIRCUIT 14CDIP

AD582KD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC SAMPL/HOLD 1 CIRCUIT 14CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case 14-CDIP (0.300", 7.62mm), current - supply 3mA.

Datasheet Request a Quote

In Stock: 6,598

Specifications

17 parameters

Product Status	Active
Amplifier Type	Sample and Hold
Number of Circuits	1
Output Type	-
Slew Rate	3V/µs
Gain Bandwidth Product	-
-3db Bandwidth	1.5 MHz
Current - Input Bias	1.5 µA
Voltage - Input Offset	2 mV

Current - Supply	3mA
Current - Output / Channel	25 mA
Voltage - Supply Span (Min)	18 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole
Package / Case	14-CDIP (0.300", 7.62mm)
Supplier Device Package	14-CDIP
