Name: AD5821ABCBZ-REEL7
Brand: Analog Devices Inc.
SKU: AD5821ABCBZ-REEL7
Price: 3.74 USD
Availability: InStock

REF: AD5821ABCBZ-REEL7 Analog Devices Inc.

AD5821ABCBZ-REEL7

Analog Devices Inc.

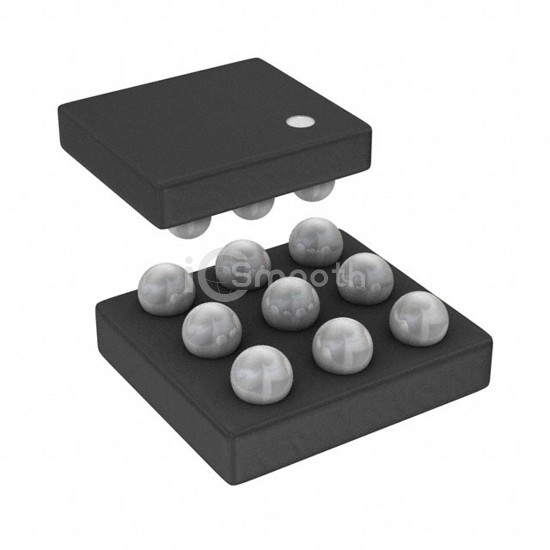

IC DAC 10BIT A-OUT 9WLCSP

AD5821ABCBZ-REEL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 10BIT A-OUT 9WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 9-UFBGA, WLCSP.

Datasheet Request a Quote

In Stock: 1,427

Tiered Pricing USD

1+ $3.7400 —

10+ $2.3990 -36%

25+ $2.0492 -45%

100+ $1.6529 -56%

250+ $1.4583 -61%

500+ $1.3386 -64%

1,000+ $1.2383 -67% BEST

Specifications

16 parameters

Product Status	Active
Number of Bits	10
Number of D/A Converters	1
Settling Time	250µs (Typ)
Output Type	Current - Buffered
Differential Output	No
Data Interface	I²C
Reference Type	Internal

Voltage - Supply, Analog	2.7V ~ 5.5V
Voltage - Supply, Digital	2.7V ~ 5.5V
INL/DNL (LSB)	±1.5, ±1 (Max)
Architecture	Current Sink
Operating Temperature	-40°C ~ 85°C
Package / Case	9-UFBGA, WLCSP
Supplier Device Package	9-WLCSP (1.52x1.69)
Mounting Type	Surface Mount
