Name: AD5765BSUZ-REEL7
Brand: Analog Devices Inc.
SKU: AD5765BSUZ-REEL7
Availability: InStock

REF: AD5765BSUZ-REEL7 Analog Devices Inc.

AD5765BSUZ-REEL7

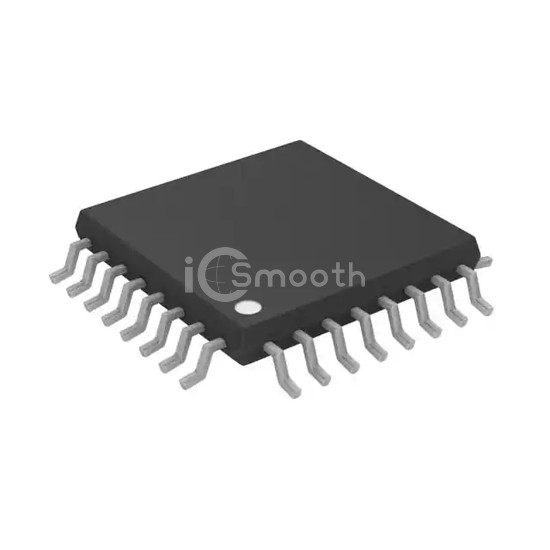

IC DAC 16BIT V-OUT 32TQFP

AD5765BSUZ-REEL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 32TQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 32-TQFP.

Datasheet Request a Quote

In Stock: 5,532

Specifications

16 parameters

Product Status	Obsolete
Number of Bits	16
Number of D/A Converters	4
Settling Time	10µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	External

Voltage - Supply, Analog	5V
Voltage - Supply, Digital	2.7V ~ 5.25V
INL/DNL (LSB)	±2 (Max), ±1 (Max)
Architecture	R-2R
Operating Temperature	-40°C ~ 105°C
Package / Case	32-TQFP
Supplier Device Package	32-TQFP (7x7)
Mounting Type	Surface Mount
