AD569SD

In Stock: 1,040

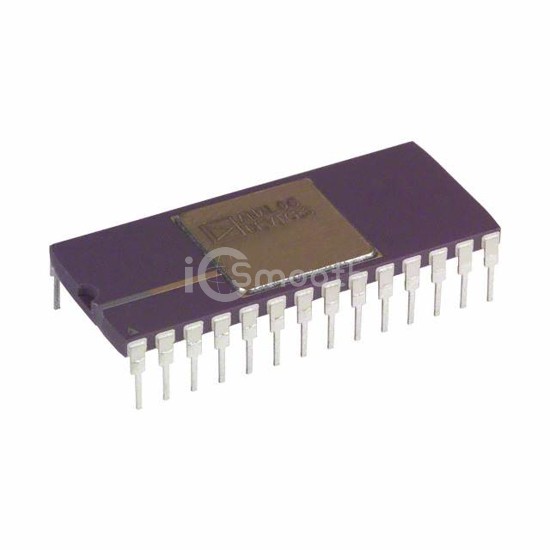

AD569SD - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD569SD Analog Devices Inc.
AD569SD

Analog Devices Inc.

IC DAC 16BIT V-OUT 28CDIP

AD569SD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±10.8V ~ 13.2V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 1,040

Specifications

16 parameters
Product StatusObsolete
Number of Bits16
Number of D/A Converters1
Settling Time6µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±10.8V ~ 13.2V
Voltage - Supply, Digital-
INL/DNL (LSB)-, ±1 (Max)
ArchitectureSegmented DAC
Operating Temperature-55°C ~ 125°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
