AD5626BCPZ-REEL7

In Stock: 10,922

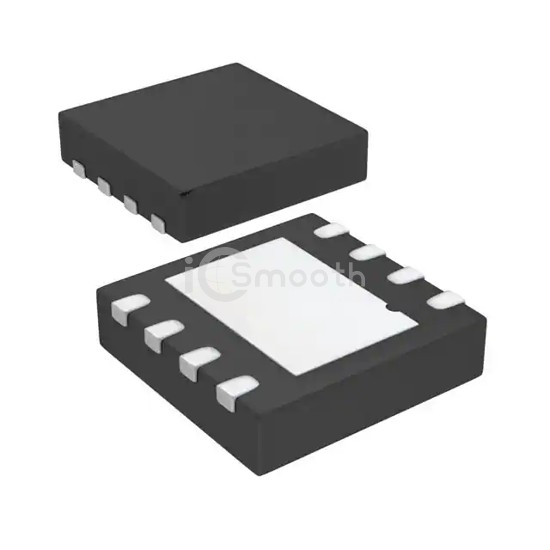

AD5626BCPZ-REEL7 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5626BCPZ-REEL7 Analog Devices Inc.
AD5626BCPZ-REEL7

Analog Devices Inc.

IC DAC 12BIT V-OUT 8LFCSP

AD5626BCPZ-REEL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 8-VDFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 10,922

Specifications

16 parameters
Product StatusObsolete
Number of Bits12
Number of D/A Converters1
Settling Time16µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeInternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.25, ±0.75
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case8-VDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP-WD (3x3)
Mounting TypeSurface Mount
