Name: AD5620BCPZ-1RL7
Brand: Analog Devices Inc.
SKU: AD5620BCPZ-1RL7
Availability: InStock

REF: AD5620BCPZ-1RL7 Analog Devices Inc.

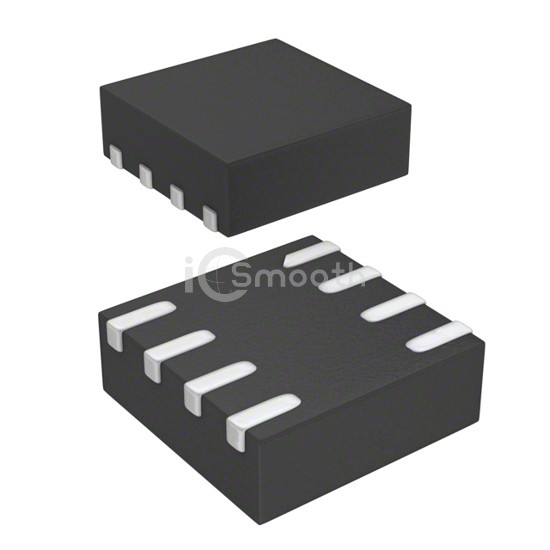

AD5620BCPZ-1RL7

IC DAC 12BIT V-OUT 8LFCSP-WD

AD5620BCPZ-1RL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 8LFCSP-WD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 2.7V ~ 3.3V, package / case 8-WDFN, CSP.

Datasheet Request a Quote

In Stock: 3,553

Specifications

16 parameters

Product Status	Active
Number of Bits	12
Number of D/A Converters	1
Settling Time	10µs
Output Type	Voltage - Buffered
Differential Output	No
Data Interface	SPI, DSP
Reference Type	Internal

Voltage - Supply, Analog	2.7V ~ 3.3V
Voltage - Supply, Digital	2.7V ~ 3.3V
INL/DNL (LSB)	±1 (Max), ±0.25 (Max)
Architecture	String DAC
Operating Temperature	-40°C ~ 105°C
Package / Case	8-WDFN, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
Mounting Type	Surface Mount
