AD558KD

In Stock: 88

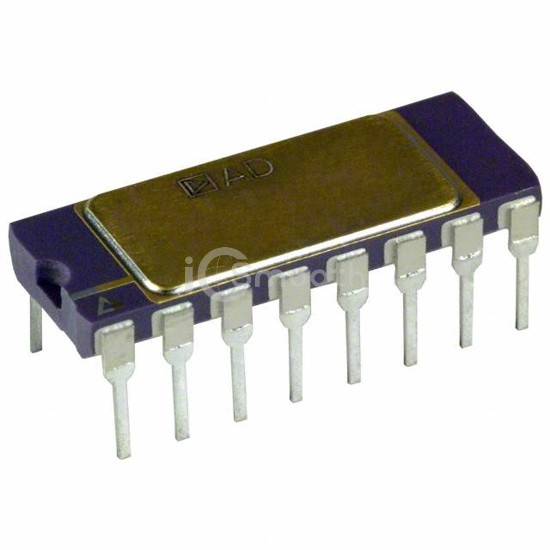

AD558KD - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD558KD Analog Devices Inc.
AD558KD

Analog Devices Inc.

IC DAC 8BIT V-OUT 16CDIP

AD558KD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT V-OUT 16CDIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.5V ~ 16.5V, package / case 16-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 88

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters1
Settling Time3µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog4.5V ~ 16.5V
Voltage - Supply, Digital4.5V ~ 16.5V
INL/DNL (LSB)±0.25 (Max), -
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case16-CDIP (0.300", 7.62mm)
Supplier Device Package16-CDIP
Mounting TypeThrough Hole
