AD5541ABCPZ-1-RL7

In Stock: 7,940

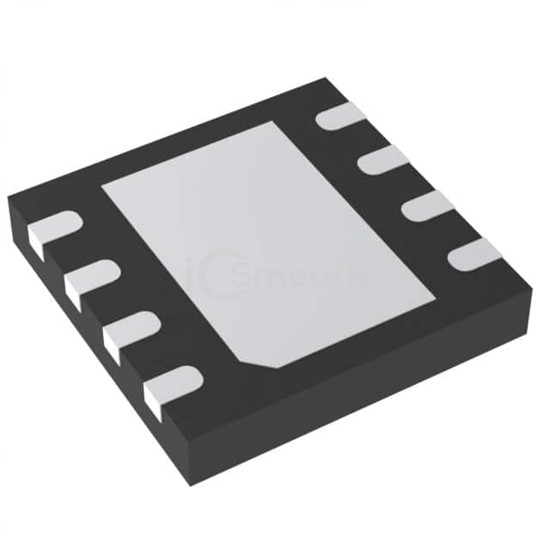

AD5541ABCPZ-1-RL7 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5541ABCPZ-1-RL7 Analog Devices Inc.
AD5541ABCPZ-1-RL7

Analog Devices Inc.

IC DAC 16BIT V-OUT 8LFCSP-WD

AD5541ABCPZ-1-RL7 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT V-OUT 8LFCSP-WD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-WFDFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 7,940

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time1µs
Output TypeVoltage - Unbuffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±0.5, ±0.5
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case8-WFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP-WD (3x3)
Mounting TypeSurface Mount
