AD5535BKBCZ

In Stock: 9,843

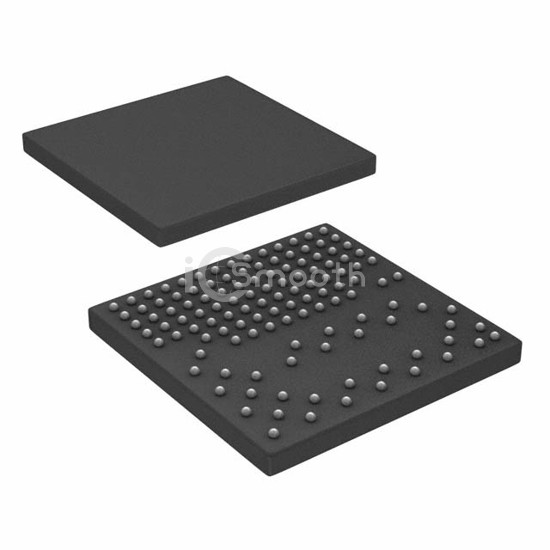

AD5535BKBCZ - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5535BKBCZ Analog Devices Inc.
AD5535BKBCZ

Analog Devices Inc.

IC DAC 14BIT V-OUT 124CSPBGA

AD5535BKBCZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 124CSPBGA. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 124-LBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 9,843

Tiered Pricing USD
1+ $161.4900 —
12+ $152.1750 -6% BEST

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters32
Settling Time65µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital2.7V ~ 5.25V
INL/DNL (LSB)±0.1, ±0.5
ArchitectureString DAC
Operating Temperature-10°C ~ 85°C
Package / Case124-LBGA, CSPBGA
Supplier Device Package124-CSPBGA (15x15)
Mounting TypeSurface Mount
