AD5532ABC-2

In Stock: 438
AD5532ABC-2 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5532ABC-2 Analog Devices Inc.
AD5532ABC-2

Analog Devices Inc.

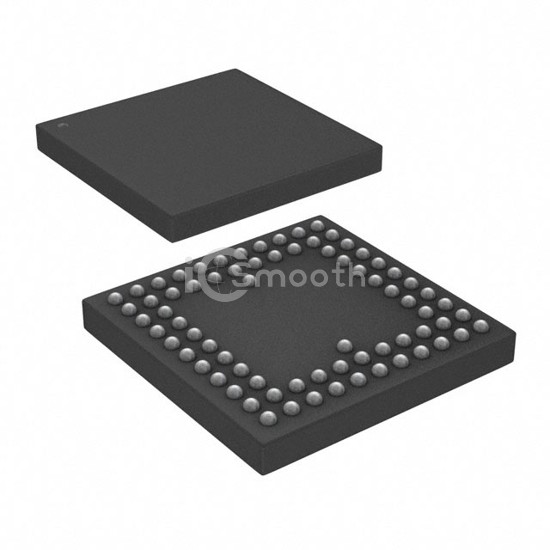

IC DAC 14BIT V-OUT 74CSPBGA

AD5532ABC-2 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 74CSPBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 74-LBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 438

Specifications

16 parameters
Product StatusObsolete
Number of Bits14
Number of D/A Converters32
Settling Time30µs
Output TypeVoltage - Unbuffered
Differential OutputNo
Data InterfaceParallel, SPI
Reference TypeExternal
Voltage - Supply, Analog5V, 8V ~ 16.5V, -4.75V ~ 16.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±0.39 (Max), ±1 (Max)
Architecture-
Operating Temperature-40°C ~ 85°C
Package / Case74-LBGA, CSPBGA
Supplier Device Package74-CSPBGA (12x12)
Mounting TypeSurface Mount
