AD5516ABC-2

In Stock: 2,496
AD5516ABC-2 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5516ABC-2 Analog Devices Inc.

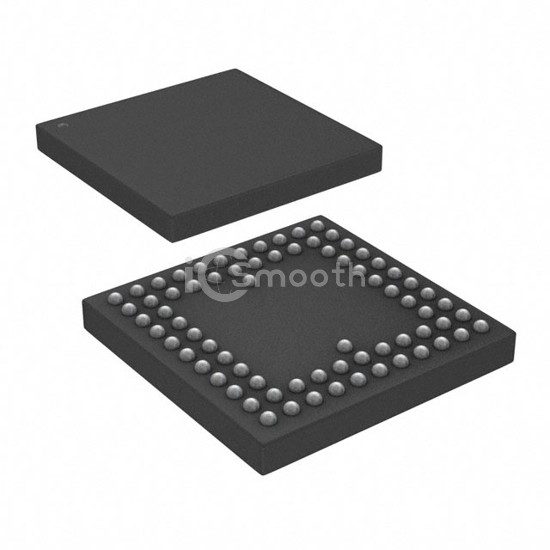

AD5516ABC-2

Analog Devices Inc.

IC DAC 12BIT V-OUT 74CSPBGA

AD5516ABC-2 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 74CSPBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.25V, package / case 74-LBGA, CSPBGA.

Datasheet Request a Quote

In Stock: 2,496

Specifications

16 parameters
Product StatusObsolete
Number of Bits12
Number of D/A Converters16
Settling Time32µs
Output TypeVoltage - Unbuffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal
Voltage - Supply, Analog±4.75V ~ 15.75V, 5V
Voltage - Supply, Digital2.7V ~ 5.25V
INL/DNL (LSB)±2 (Max), ±0.5
ArchitectureString DAC
Operating Temperature-40°C ~ 85°C
Package / Case74-LBGA, CSPBGA
Supplier Device Package74-CSPBGA (12x12)
Mounting TypeSurface Mount
