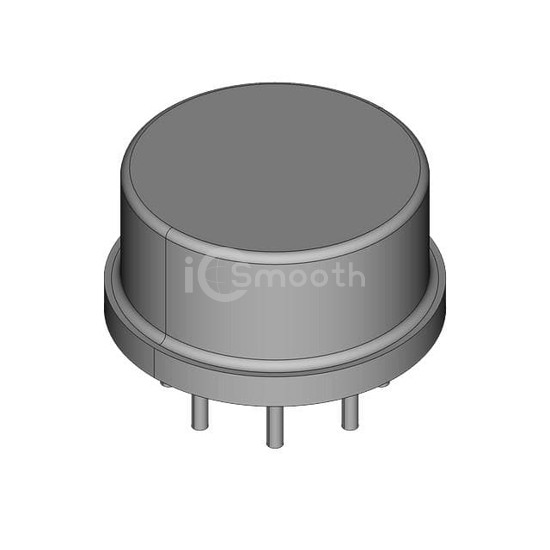

AD542SH

In Stock: 373
AD542SH - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD542SH Analog Devices Inc.
AD542SH

Analog Devices Inc.

IC OPAMP JFET 1 CIRCUIT TO99-8

AD542SH is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP JFET 1 CIRCUIT TO99-8. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-99-8 Metal Can, current - supply 1.1mA.

Datasheet Request a Quote

In Stock: 373

Specifications

17 parameters
Product StatusActive
Amplifier TypeJ-FET
Number of Circuits1
Output Type-
Slew Rate3V/µs
Gain Bandwidth Product-
-3db Bandwidth50 kHz
Current - Input Bias10 pA
Voltage - Input Offset1 mV
Current - Supply1.1mA
Current - Output / Channel25 mA
Voltage - Supply Span (Min)10 V
Voltage - Supply Span (Max)36 V
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-99-8 Metal Can
Supplier Device PackageTO-99-8
