AD5392BSTZ-3

In Stock: 270

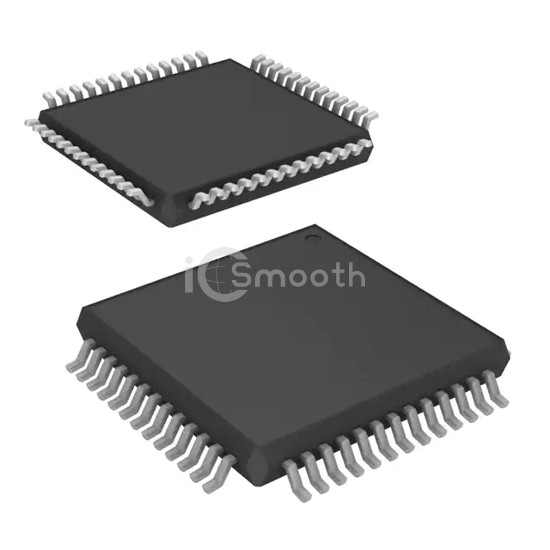

AD5392BSTZ-3 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5392BSTZ-3 Analog Devices Inc.
AD5392BSTZ-3

Analog Devices Inc.

IC DAC 14BIT V-OUT 52LQFP

AD5392BSTZ-3 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 52LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 52-LQFP.

Request a Quote

In Stock: 270

Specifications

16 parameters
Product StatusObsolete
Number of Bits14
Number of D/A Converters8
Settling Time8µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, SPI, DSP
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 3.6V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±4 (Max), -1/+2 (Max)
ArchitectureString DAC
Operating Temperature-40°C ~ 85°C
Package / Case52-LQFP
Supplier Device Package52-LQFP (10x10)
Mounting TypeSurface Mount
