AD5382BSTZ-5

In Stock: 1
AD5382BSTZ-5 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD5382BSTZ-5 Analog Devices Inc.
AD5382BSTZ-5

Analog Devices Inc.

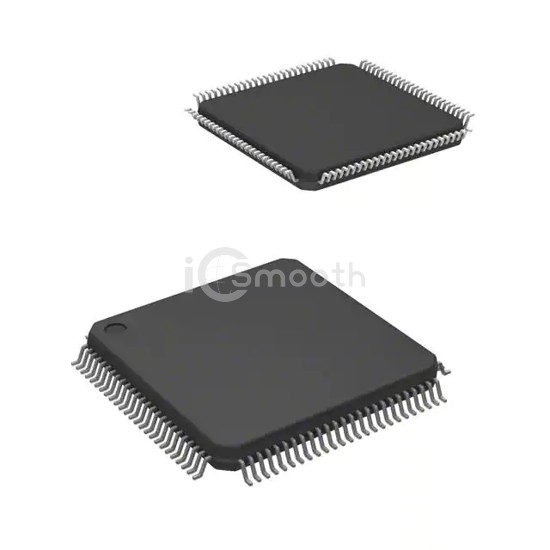

IC DAC 14BIT V-OUT 100LQFP

AD5382BSTZ-5 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 100LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 100-LQFP.

Datasheet Request a Quote

In Stock: 1

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters32
Settling Time8µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, Parallel, SPI, DSP
Reference TypeExternal, Internal
Voltage - Supply, Analog5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±4 (Max), -1/+2 (Max)
ArchitectureString DAC
Operating Temperature-40°C ~ 85°C
Package / Case100-LQFP
Supplier Device Package100-LQFP (14x14)
Mounting TypeSurface Mount
