Name: AD524CD
Brand: Analog Devices Inc.
SKU: AD524CD
Availability: InStock

REF: AD524CD Analog Devices Inc.

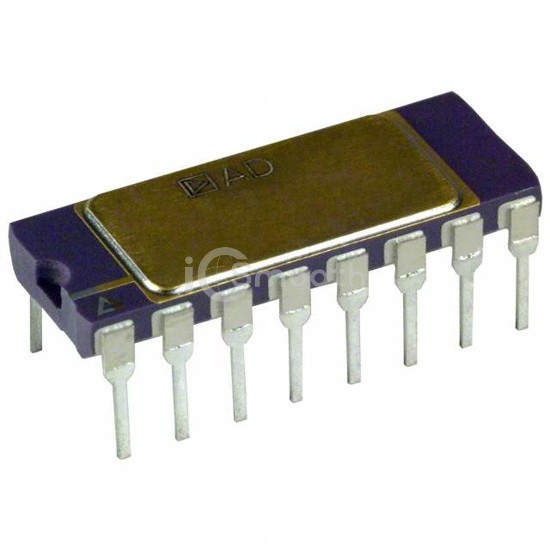

AD524CD

IC INST AMP 1 CIRCUIT 16CDIP

AD524CD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC INST AMP 1 CIRCUIT 16CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case 16-CDIP (0.300", 7.62mm), current - supply 3.5mA.

Datasheet Request a Quote

In Stock: 3,372

Specifications

17 parameters

Product Status	Active
Amplifier Type	Instrumentation
Number of Circuits	1
Output Type	-
Slew Rate	5V/µs
Gain Bandwidth Product	1 MHz
-3db Bandwidth	1 MHz
Current - Input Bias	15 nA
Voltage - Input Offset	50 µV

Current - Supply	3.5mA
Current - Output / Channel	-
Voltage - Supply Span (Min)	12 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CDIP
