Name: AD522BD
Brand: Analog Devices Inc.
SKU: AD522BD
Price: 348.51 USD
Availability: InStock

REF: AD522BD Analog Devices Inc.

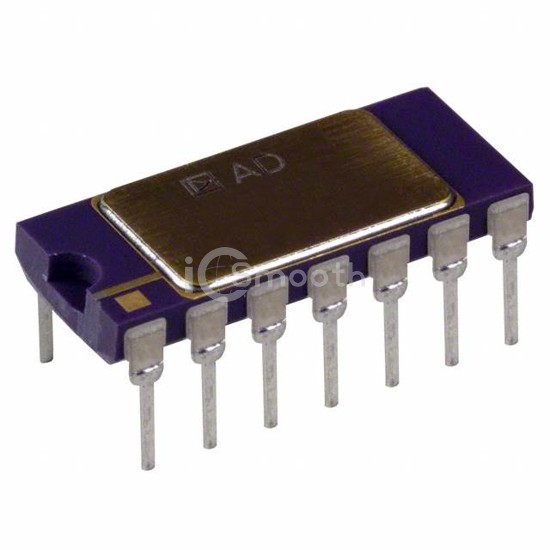

AD522BD

IC INST AMP 1 CIRCUIT 14CERDIP

AD522BD is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC INST AMP 1 CIRCUIT 14CERDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case 14-CDIP (0.300", 7.62mm), current - supply 8mA.

Datasheet Request a Quote

In Stock: 14

Specifications

17 parameters

Product Status	Obsolete
Amplifier Type	Instrumentation
Number of Circuits	1
Output Type	-
Slew Rate	0.1V/µs
Gain Bandwidth Product	1.5 kHz
-3db Bandwidth	300 kHz
Current - Input Bias	25 nA
Voltage - Input Offset	200 µV

Current - Supply	8mA
Current - Output / Channel	-
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	14-CDIP (0.300", 7.62mm)
Supplier Device Package	14-CERDIP
