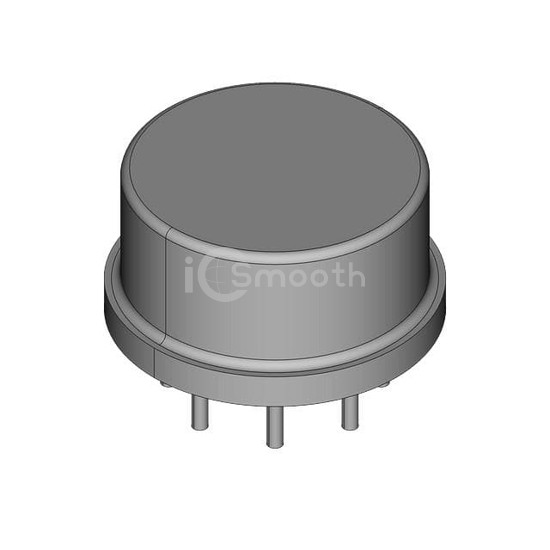

AD515JH

In Stock: 3,373
AD515JH - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD515JH Analog Devices Inc.
AD515JH

Analog Devices Inc.

IC OPAMP GP 1 CIRCUIT TO99-8

AD515JH is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP GP 1 CIRCUIT TO99-8. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-99-8 Metal Can, current - supply 800µA.

Datasheet Request a Quote

In Stock: 3,373

Specifications

17 parameters
Product StatusActive
Amplifier TypeGeneral Purpose
Number of Circuits1
Output Type-
Slew Rate1V/µs
Gain Bandwidth Product350 kHz
-3db Bandwidth-
Current - Input Bias0.3 pA
Voltage - Input Offset400 µV
Current - Supply800µA
Current - Output / Channel25 mA
Voltage - Supply Span (Min)10 V
Voltage - Supply Span (Max)36 V
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-99-8 Metal Can
Supplier Device PackageTO-99-8
