AD509JH

In Stock: 7,860
AD509JH - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD509JH Analog Devices Inc.

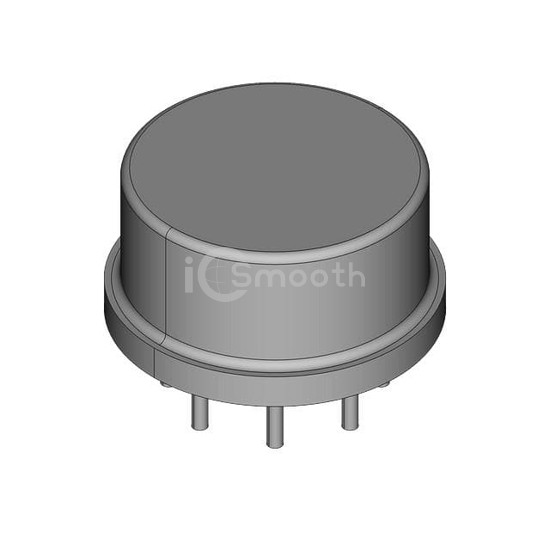

AD509JH

Analog Devices Inc.

IC OPAMP GP 1 CIRCUIT TO99

AD509JH is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP GP 1 CIRCUIT TO99. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-99-8 Metal Can, current - supply 4mA.

Datasheet Request a Quote

In Stock: 7,860

Specifications

17 parameters
Product StatusActive
Amplifier TypeGeneral Purpose
Number of Circuits1
Output Type-
Slew Rate120V/µs
Gain Bandwidth Product-
-3db Bandwidth20 MHz
Current - Input Bias125 nA
Voltage - Input Offset5 mV
Current - Supply4mA
Current - Output / Channel-
Voltage - Supply Span (Min)10 V
Voltage - Supply Span (Max)40 V
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-99-8 Metal Can
Supplier Device PackageTO-99
