AD504LH

In Stock: 349
AD504LH - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AD504LH Analog Devices Inc.
AD504LH

Analog Devices Inc.

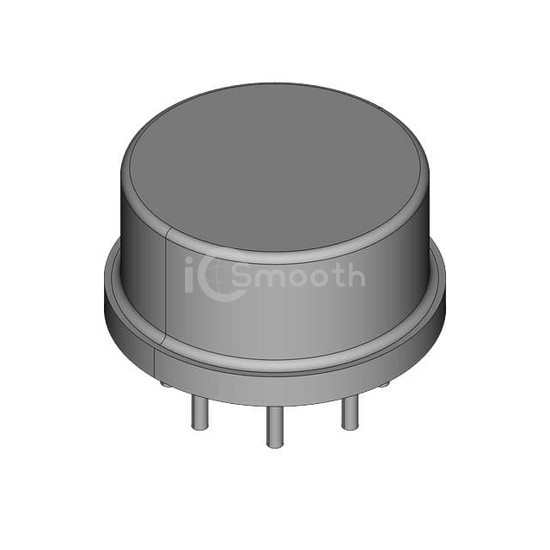

IC OPAMP GP 1 CIRCUIT TO99

AD504LH is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC OPAMP GP 1 CIRCUIT TO99. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, package / case TO-99-8 Metal Can, current - supply 1.5mA.

Datasheet Request a Quote

In Stock: 349

Specifications

17 parameters
Product StatusActive
Amplifier TypeGeneral Purpose
Number of Circuits1
Output Type-
Slew Rate0.12V/µs
Gain Bandwidth Product-
-3db Bandwidth300 kHz
Current - Input Bias80 nA
Voltage - Input Offset200 µV
Current - Supply1.5mA
Current - Output / Channel25 mA
Voltage - Supply Span (Min)10 V
Voltage - Supply Span (Max)36 V
Operating Temperature0°C ~ 70°C
Mounting TypeThrough Hole
Package / CaseTO-99-8 Metal Can
Supplier Device PackageTO-99
