AD390TD

In Stock: 2

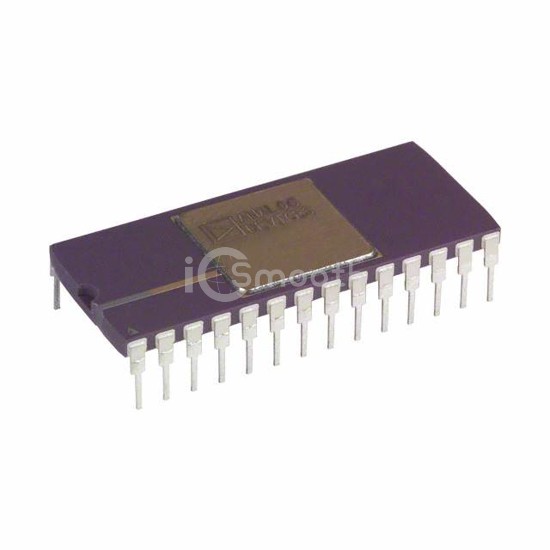

AD390TD - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: AD390TD Analog Devices Inc.
AD390TD

Analog Devices Inc.

IC DAC 12BIT V-OUT 28CDIP

AD390TD is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, analog ±13.5V ~ 16.5V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 2

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time8µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±13.5V ~ 16.5V
Voltage - Supply, Digital-
INL/DNL (LSB)±0.25, ±0.5
Architecture-
Operating Temperature-55°C ~ 125°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
