Name: AD260AND-4
Brand: Analog Devices Inc.
SKU: AD260AND-4
Price: 66.01 USD
Availability: InStock

REF: AD260AND-4 Analog Devices Inc.

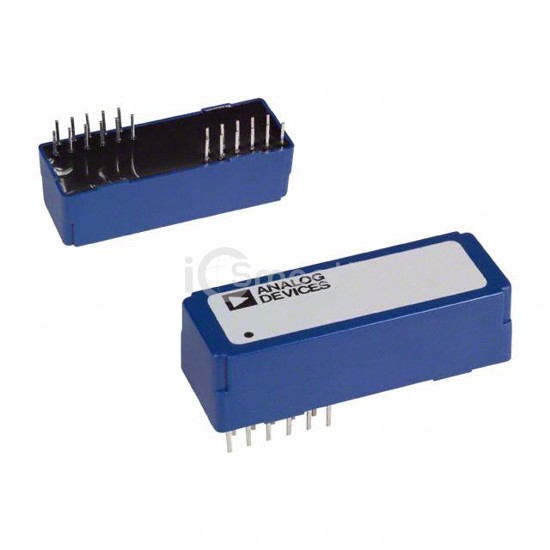

AD260AND-4

DGTL ISO 1750VRMS 5CH GP 22DIP

AD260AND-4 is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 1750VRMS 5CH GP 22DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply 4V ~ 5.75V, package / case 22-DIP Module.

Datasheet Request a Quote

In Stock: 4

Specifications

18 parameters

Product Status	Obsolete
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	5
Inputs - Side 1/Side 2	4/1
Channel Type	Unidirectional
Voltage - Isolation	1750Vrms
Common Mode Transient Immunity (Min)	10kV/µs

Data Rate	-
Propagation Delay tpLH / tpHL (Max)	25ns, 25ns
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Supply	4V ~ 5.75V
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	22-DIP Module
Supplier Device Package	22-PDIP
