AD1986AJCPZ

In Stock: 5,403

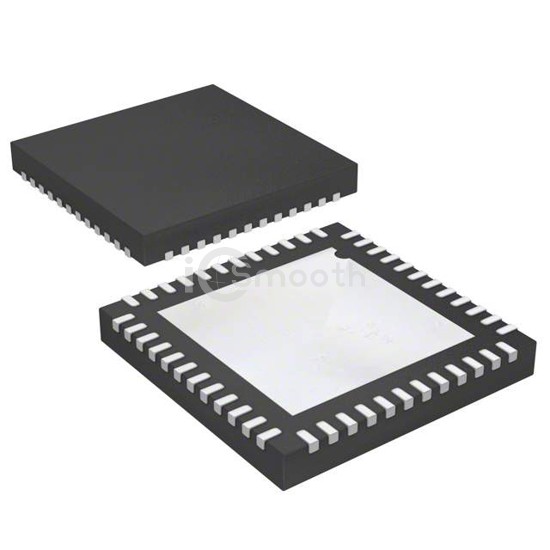

AD1986AJCPZ - Analog Devices Inc. - Interface - CODECs
REF: AD1986AJCPZ Analog Devices Inc.
AD1986AJCPZ

Analog Devices Inc.

IC CODEC HD AUDIO AC'97 48LFCSP

AD1986AJCPZ is a Interface - CODECs manufactured by Analog Devices Inc.. IC CODEC HD AUDIO AC'97 48LFCSP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 2.97V ~ 3.63V, package / case 48-VFQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 5,403

Specifications

14 parameters
Product StatusObsolete
TypeAudio Codec '97, HD
Data InterfaceSerial
Resolution (Bits)20 b
Number of ADCs / DACs2 / 6
Sigma DeltaNo
S/N Ratio, ADCs / DACs (db) Typ-
Dynamic Range, ADCs / DACs (db) Typ85 / 91
Voltage - Supply, Analog4.5V ~ 5.5V
Voltage - Supply, Digital2.97V ~ 3.63V
Operating Temperature0°C ~ 70°C
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad, CSP
Supplier Device Package48-LFCSP-VQ (7x7)
