Name: AD1580BRT-REEL
Brand: Analog Devices Inc.
SKU: AD1580BRT-REEL
Availability: InStock

REF: AD1580BRT-REEL Analog Devices Inc.

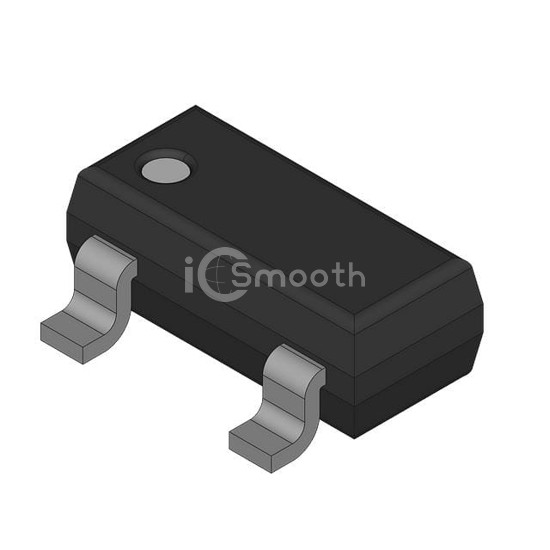

AD1580BRT-REEL

1.2V PRECISION SHUNT VOLTAGE REF

AD1580BRT-REEL is a PMIC - Voltage Reference manufactured by Analog Devices Inc.. 1.2V PRECISION SHUNT VOLTAGE REF. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-236-3, SC-59, SOT-23-3, output type Fixed.

Datasheet Request a Quote

In Stock: 4,263

Specifications

17 parameters

Product Status	Active
Reference Type	Shunt
Output Type	Fixed
Voltage - Output (Min/Fixed)	1.225V
Voltage - Output (Max)	-
Current - Output	-
Tolerance	±0.08%
Temperature Coefficient	50ppm/°C
Noise - 0.1Hz to 10Hz	5µVp-p

Noise - 10Hz to 10kHz	20µVrms
Voltage - Input	-
Current - Supply	-
Current - Cathode	50 µA
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
