Name: AD1580BKSZ-REEL7
Brand: Analog Devices Inc.
SKU: AD1580BKSZ-REEL7
Price: 4.26 USD
Availability: InStock

REF: AD1580BKSZ-REEL7 Analog Devices Inc.

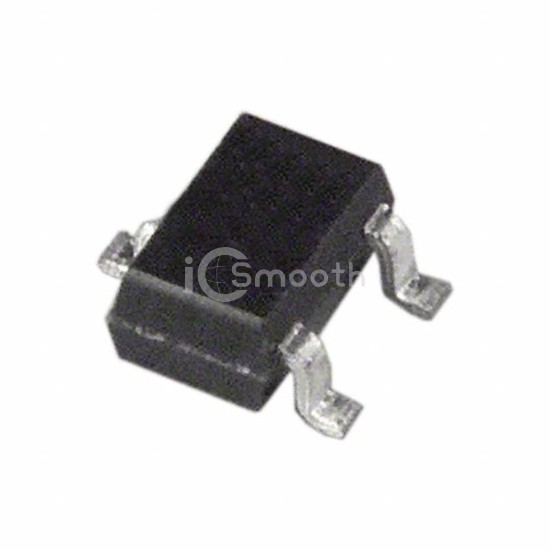

AD1580BKSZ-REEL7

Analog Devices Inc.

IC VREF SHUNT 0.2% SC70-3

AD1580BKSZ-REEL7 is a PMIC - Voltage Reference manufactured by Analog Devices Inc.. IC VREF SHUNT 0.2% SC70-3. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-70, SOT-323, current - output 10 mA.

Datasheet Request a Quote

In Stock: 5,907

Tiered Pricing USD

1+ $4.2600 —

10+ $2.7530 -35%

25+ $2.3588 -45%

100+ $1.9133 -55%

250+ $1.6945 -60%

500+ $1.5598 -63%

1,000+ $1.4471 -66% BEST

Specifications

17 parameters

Product Status	Active
Reference Type	Shunt
Output Type	Fixed
Voltage - Output (Min/Fixed)	1.225V
Voltage - Output (Max)	-
Current - Output	10 mA
Tolerance	±0.2%
Temperature Coefficient	50ppm/°C
Noise - 0.1Hz to 10Hz	5µVp-p

Noise - 10Hz to 10kHz	20µVrms
Voltage - Input	-
Current - Supply	-
Current - Cathode	50 µA
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70-3
