Name: AD1385TD
Brand: Analog Devices Inc.
SKU: AD1385TD
Price: 1047.86 USD
Availability: InStock

REF: AD1385TD Analog Devices Inc.

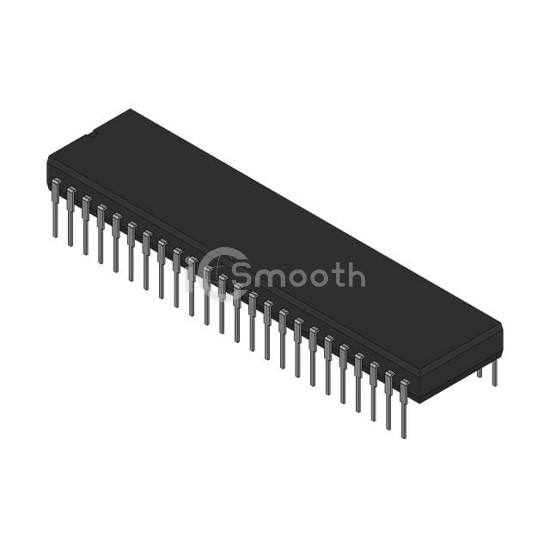

AD1385TD

16-BIT 500 KHZ SAMPLING ADC

AD1385TD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 16-BIT 500 KHZ SAMPLING ADC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 14.25V ~ 15.75V, ±4.75V ~ 5.25V, package / case 48-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 4

Specifications

18 parameters

Product Status	Active
Number of Bits	16
Sampling Rate (Per Second)	500k
Number of Inputs	1
Input Type	Single Ended
Data Interface	Parallel
Configuration	S/H-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	Flash
Reference Type	External, Internal
Voltage - Supply, Analog	14.25V ~ 15.75V, ±4.75V ~ 5.25V
Voltage - Supply, Digital	14.25V ~ 15.75V, ±4.75V ~ 5.25V
Features	-
Operating Temperature	-55°C ~ 125°C
Package / Case	48-CDIP (0.600", 15.24mm)
Supplier Device Package	48-SBDIP
Mounting Type	Through Hole
