Name: AD1334BD
Brand: Analog Devices Inc.
SKU: AD1334BD
Price: 385.88 USD
Availability: InStock

REF: AD1334BD Analog Devices Inc.

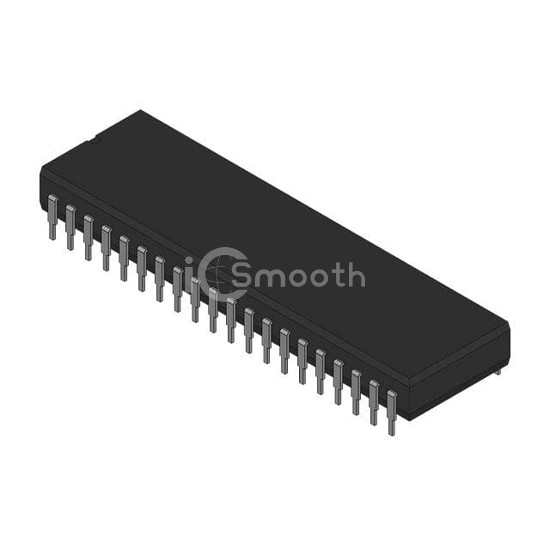

AD1334BD

4-CH 12-BIT SAMPLING ADC FOR DSP

AD1334BD is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. 4-CH 12-BIT SAMPLING ADC FOR DSP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, digital 4.75V ~ 5.25V, ±11.4V ~ 15.75V, package / case 40-CDIP (0.900", 22.86mm).

Datasheet Request a Quote

In Stock: 20

Specifications

18 parameters

Product Status	Active
Number of Bits	12
Sampling Rate (Per Second)	-
Number of Inputs	12
Input Type	Differential
Data Interface	Parallel
Configuration	S/H-MUX-ADC
Ratio - S/H:ADC	1:1
Number of A/D Converters	1

Architecture	-
Reference Type	Internal
Voltage - Supply, Analog	4.75V ~ 5.25V, ±11.4V ~ 15.75V
Voltage - Supply, Digital	4.75V ~ 5.25V, ±11.4V ~ 15.75V
Features	-
Operating Temperature	-40°C ~ 85°C
Package / Case	40-CDIP (0.900", 22.86mm)
Supplier Device Package	40-CDIP
Mounting Type	Through Hole
