5962-89657023A

In Stock: 6

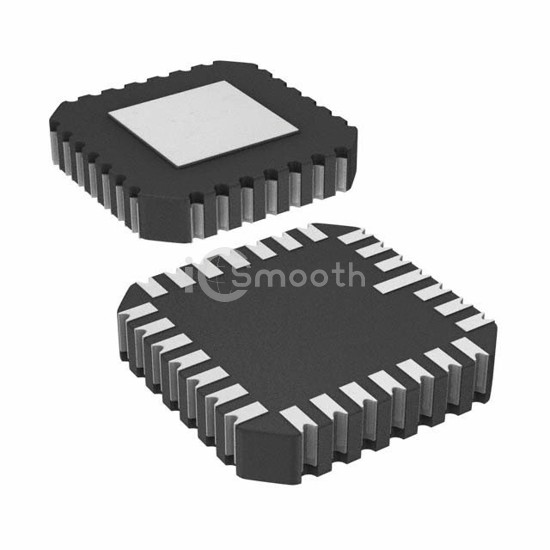

5962-89657023A - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-89657023A Analog Devices Inc.
5962-89657023A

Analog Devices Inc.

IC DAC 12BIT LC2MOS DUAL 28CLCC

5962-89657023A is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT LC2MOS DUAL 28CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 10.8V ~ 16.5V, package / case 28-LCC.

Datasheet Request a Quote

In Stock: 6

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters2
Settling Time1.5µs
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog10.8V ~ 16.5V
Voltage - Supply, Digital10.8V ~ 16.5V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-LCC
Supplier Device Package28-LCC (11.43x11.43)
Mounting TypeSurface Mount
