5962-88766013A

In Stock: 914

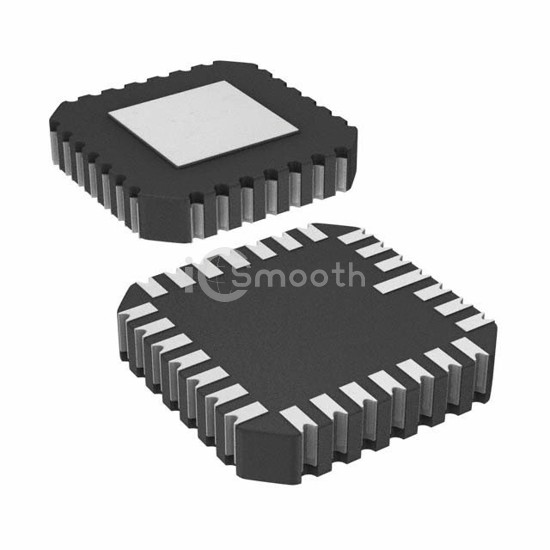

5962-88766013A - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-88766013A Analog Devices Inc.
5962-88766013A

Analog Devices Inc.

IC 12BIT PAR 28CLCC

5962-88766013A is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC 12BIT PAR 28CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital ±10.8V ~ 16.5V, package / case 28-LCC.

Datasheet Request a Quote

In Stock: 914

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters1
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog±10.8V ~ 16.5V
Voltage - Supply, Digital±10.8V ~ 16.5V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-LCC
Supplier Device Package28-LCC (11.43x11.43)
Mounting TypeSurface Mount
