5962-8876502RX

In Stock: 686

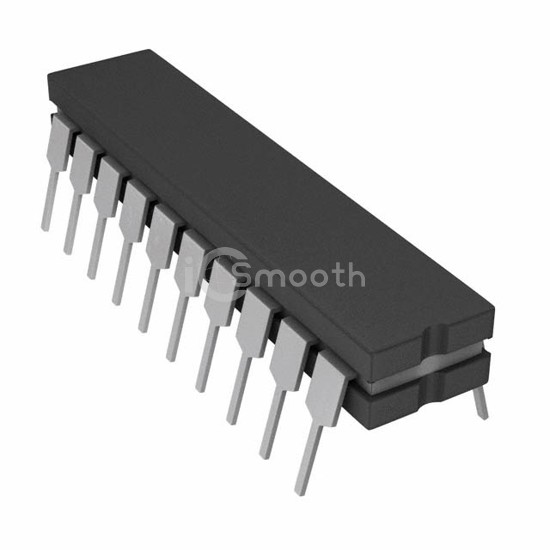

5962-8876502RX - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-8876502RX Analog Devices Inc.
5962-8876502RX

Analog Devices Inc.

IC DAC 12BIT LC2MOS DUAL 20CDIP

5962-8876502RX is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT LC2MOS DUAL 20CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 15V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 686

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters2
Settling Time1.5µs
Output TypeCurrent - Unbuffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog15V
Voltage - Supply, Digital15V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case20-CDIP (0.300", 7.62mm)
Supplier Device Package20-CERDIP
Mounting TypeThrough Hole
