5962-8871902MXA

In Stock: 1

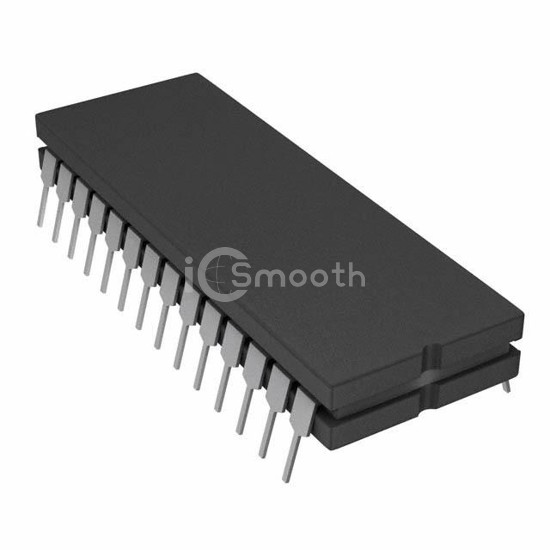

5962-8871902MXA - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-8871902MXA Analog Devices Inc.
5962-8871902MXA

Analog Devices Inc.

IC DAC 12BIT QUAD MONO 28CERDIP

5962-8871902MXA is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT QUAD MONO 28CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 4.5V ~ 5.5V, package / case 28-CDIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 1

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±11.4V ~ 16.5V
Voltage - Supply, Digital4.5V ~ 5.5V
INL/DNL (LSB)±0.5, ±0.5 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
Mounting TypeThrough Hole
