5962-88663023X

In Stock: 105
5962-88663023X - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: 5962-88663023X Analog Devices Inc.
5962-88663023X

Analog Devices Inc.

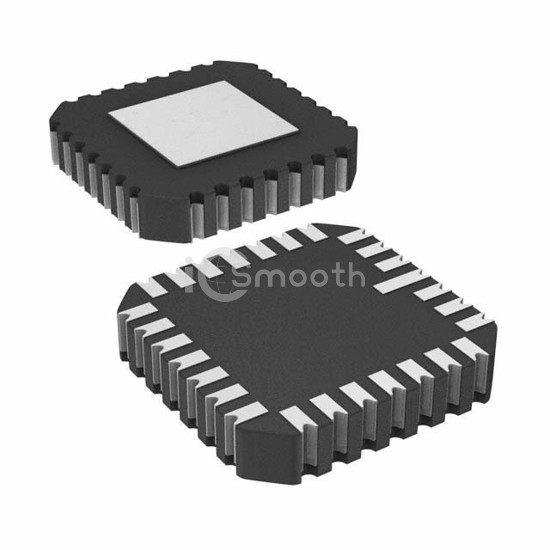

IC DAC 8BIT OCTAL 28CLCC

5962-88663023X is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 8BIT OCTAL 28CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 13.5V ~ 16.5V, package / case 28-LCC.

Datasheet Request a Quote

In Stock: 105

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters8
Settling Time5µs, 7µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog10.8V ~ 16.5V, -4.5V ~ -5.5V
Voltage - Supply, Digital13.5V ~ 16.5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case28-LCC
Supplier Device Package28-LCC (11.43x11.43)
Mounting TypeSurface Mount
